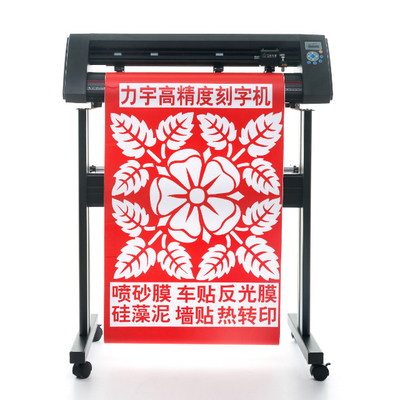

LIYU TC Series Auto Die Cut Cut Plotter Vinyl Cutter Plotter Vinyl Cutter 122*36*45

1 set
MOQ
LIYU TC Series Auto Die Cut Cut Plotter Vinyl Cutter Plotter Vinyl Cutter 122*36*45
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Model Number: TC801-AF
Voltage: AC220V/110V,50Hz~60Hz
Cache Capacity: 1GB
Paper Feed Width: 710mm/880mm/1340mm
Cutter Pressure: 10~500g
Cutting Width: 600mm/780mm/1260mm
Cutting Speed: 800mm/s
Driver: Direct Output from CorelDraw
Cutting Length: Limitless
Repeat Cutting: 0.127mm
Size: 122*36*45
LCD Display &Stand: Yes
Type of Command: HP-GL,DM-PL
Drive: Stepper
Contour cut: optional
Interface: USB+U Disk+Serial Port
Color: Black
Blade: 3pcs in one box 30 /45 Degree
Multi-connection available: USB Flash
Warranty: 14 Months
Grundinformation
Model Number: TC801-AF
Zahlung und Versand AGB
Packaging Details: Reliable and export standard cartoon package
Supply Ability: 2000 Set/Sets per Month
Produkt-Beschreibung
Specification
Model
TC631-AF
TC801-AF
TC1261-AF
Cutting Size
630mm
800mm
1260mm
Media Size
710mm
880mm
1340mm
Max.Cutting Speed
800mm/s
Cutting Pressure
10-500g Digital adjustable
LCD Display&Stand
Yes
Buffer capacity
1Gb
Resolution
0.0254mm/step
Offset
0-1mm/m
Origin Adjustable
Yes
Repeatability
0.127mm
Power
AC220V(110V)±15%，<100W
Language Format
HP-GL,DM-PL
Interface
USB2.0&Serial U-disk
Drive
Stepper Motor
Princh Roller
3pcs
5pcs
Highlight Features
1. USB 2.0 interface, support hot-swappable, and is equipped with serial port to support the long-distance data transmission.
2.1Gb super-memory achieves a long time Offline cutting, meanwhile, the data storage can be achieved even blackout.
3. New adopted ARM processor and new driver module,system more powerful,driving more stable. higher speed, lower noise.
4. Digital force & speed adjustable, direct and steady.
5. Humane design, allows to adjust cutting force and speed while working.
6. High-precision "steel barbed" axis, higher accuracy.
7. Auto. memory of blade force & Speed, adjustable at any time, easy to use.
8. Emergency stop & stop to return at any time to monitor the cutting quality, easy to operate.
9. The product has the fuction of offline copy up to 99 copies, which helps to save time and working labor effectively.
10 .TC series can be compatible with CorelDRAW, and it can be output from CorelDRAW directly.
11. TC series has the real contour cut function optinal(TC-AF), full-automatic and easy to achieve contour cut withoutinterference from other light sources, high resolution.
FAQ
1.How about your factory?
Our factory was established in 1995.Two production bases up to 38,000 square meters locates in Hefei City,Anhui Province(very near to Shanghai). With more than 200 employees and 26+ years of experience in the production and development of cutting plotter field.Welcome to visit our factory at any time!

2.Is it safe for us to pay for our first cooperation?
.We can do the trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment way as you want.

3.What are the delivery way and deivery time?
Samples and small orders will be shipped by air and large orders will be shipped by sea. Samples and if the order less than 100 sets,delivery time around 1-5 working days. We have super production capacity, orders within 500 sets can be delivered in 7 working days

4. Can you offer OEM/ODM service?
We have a professional R&D team of more than 50 people to better support OEM&ODM orders.

5. What is your warranty Policy for Cutting Plotter?
The warranty period is 14 months.If there is any faulty in warranty period,free spare parts and train will be offered.

6. Can you provide the demo machine to me?
Yes, we can make you a sample for your approval, but there is a sample charge, which will be returned to you in your next order.
